K150 ile PIC 12F629 Programlama, PWM çıkış RGB LED.

Evet arkadaşlar yine bir pic işlemci ile basit bir proje yaptık; Pic 12F629 ile RGB LED kontrolü. Kodu ben yazmadım, sadece hex dosyasını ben aldım. proje ve 12F629 oldukça basit ama burada K150 pic programlayıcı yüklenmesi ve kullanımı daha önemliydi. Daha önceki başka bir projede Pic programlayıcılar hakkında konuşmuştuk zaten. O konuya hiç girmeyeceğim.

Hex dosyaları (nadir de bulunsa) işlemciye nasıl yükleyeceğiz. Piyasada ‘pickit’ler var ama pahalı. Zaten ben de bu işin amatörüyüm diye K150 programlayıcısını (çok daha ucuz olan) almıştım. Aslında kurulumunda da zorlanmıştım. Birkaç kişi bana bununla ilgili soru sorunca bir video hazırlamaya karar verdim. Bu öyle bir proje işte! Çok da lafı uzatmayacağım, devre şeması ve hex kod aşağıdadır. Başarılar herkese…

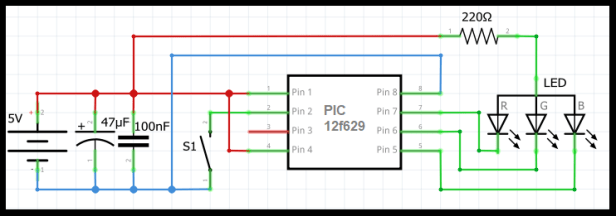

pic12_Devre_seması

IMG_20190706_183456

Kod:

:020000040000FA
:100000008316FF308500FF2390009F01053081009B
:100010009516151696168312073099008B15203009
:100020008400DF008001840ADF08031D1228952068
:10003000B33081000B110A30B0007E20031D22284E
:10004000A50A1D281121A600250203182A2803014C
:10005000A600022126082406031930287E202A281B
:100060006020A2200030051EFF308500C100411233
:100070008316F830850083123D28C00F43284108BD
:1000800085000B191721C108031D532840083707A5
:100090000318051540083507031885144008330771
:1000A000031805143D2840083707031805114008B8
:1000B00035070318851040083307031805103D283D
:1000C0007A20A700013E0319752827308400840A8E
:1000D000A20A0319A30A7A2080002B300406031D0C
:1000E0006728A20A0319A30A08002008A200210811
:1000F000A300602823088A00220882009E20013E77
:10010000031987280530A0070318A10A7E28A40A2E
:10011000A00A0319A10A9E20013E03199528200870
:10012000A2002108A30003010800A4010130A100DE
:10013000A3007930A000A200FF38080021088A003F
:10014000200882002808B1002708AF00031DB0284E
:100150002908B3002A08B5002B08B700BF01080022
:100160000730BF000130B200B400B60033082902E6
:100170000318BD28B203B203003CB80035082A02B8
:100180000318C528B403B403003CB90037082B0298
:100190000318CD28B603B603003CBA00380839026C
:1001A0000318D92838083A023A080318DE28380814
:1001B000DE2839083A023A08031C3908003CBE0020
:1001C000BB00BC00BD0008002408022141088500D6
:1001D000831605128312851EEB280F30FA200508BE
:1001E0000B10630000005A30FA20851AEB28851E98
:1001F000F728002881010B110B1DFC28FF3E031D71
:10020000FA2808008512831685129A009B018C1328
:100210001C1555309D00AA309D009C148516831234
:10022000080083169B011C141A0883120800010899
:10023000B33E81000B11AE0803192429AD0B24290C
:10024000AE0B242924080221851A2A29AC0A031995
:10025000E4283B29FC302C0703183029AC013B294A
:100260007E206020B301B501B701A2200A30B000A2
:10027000AC010830AE00BF0803196D29AF0B0800B0
:100280002708AF0029083306031D48293F105029CD
:100290003808BB07031C50293E08BB073208B307C8
:1002A0002A083506031D5629BF105E293908BC07E8
:1002B000031C5E293E08BC073408B5072B08370627
:1002C000031D64293F1108003A08BD07031C0800FC
:1002D0003E08BD073608B7070800B108031976299C
:1002E000B00B08000A30B000B10B08006020A2205B
:1002F000080000340534FF34003400340134003485
:10030000003400340034003405340034FF34003449
:100310000134003400340034003400340534003437
:100320000034FF3401340034003400340034FF342E
:1003300002340134FF340034003402340134003418
:10034000FF3400340234013400340034FF34FF340D
:1003500002340134FF344034003402340134403478
:100360000034FF34023401340034FF344034FF34AD
:100370000034FE34FF3400340034FF340034FE34E3
:100380000034FF340034FF340034FE3400340034D1
:10039000FF34FF340034FE34F0340034F034FF34E2
:1003A0000034FE34FF349B340034FF340034FE3418
:1003B000F034F034F034FF340034FE3480348034D0
:1003C0008034FF340034FE34303430343A34FF3477
:1003D00000340134FF34003400340034013400347C
:1003E000FF3400340034013400340034FF34FF346F
:1003F0000334003480348034803400340134C83411
:10040000FF34FF340034013400340034003400344D
:100410000134C834FF34FF34003401340034003474
:10042000003400340134C834FF34FF340034013464
:1004300000340034003400340134C834FF34FF3455
:100440000034013400340034003400340134C83442
:10045000FF34FF34003401340034003400340034FD
:100460000134C834FF34FF34003401348034803424
:10047000803402340234003400340034FF34063453
:100480000A34FF340034003406340A34FF34FF34B5
:10049000003406340A340034FF34003406340A349D
:1004A0000034FF34FF3406340A3400340034FF349F
:1004B00006340A34FF340034FF34FF341934FE3478
:1004C000FF34003400341934FE34FF34FF34003478
:1004D0001934FE340034FF3400341934FE3400344F
:1004E000FF34FF341934FE3400340034FF3419343F
:1004F000FE34FF340034FF34FF3404340A34FE3455
:100500002034003404340A34FE348034003404349B
:100510000A34FE34F034003404340A348034F034C5
:100520000034FF3404340A3400341034FF3404340B
:100530000A3400348034FF3404340A340034F03494
:10054000803404340A3410341034F03404340A345F
:10055000F0341034F03404340A3440340034FA34C3
:10056000FF340A340434F0340034F0340A340434F0
:1005700020340034F0340A340434803400348034BD
:100580000A340434F03400342034FF3400340534A9
:10059000003400340A3400340534003400340034AC
:1005A000FF34FF34723467346234733461345F343F
:1005B00069346E34653474342E34613473346D347C
:1005C0002034303439342F34303436342F3432340C
:1005D0003034303437342034523432342E343034E2
:1005E0002E34323428346334293420345034653482
:1005F0007434653420344734723469346634663474
:1006000069347434683473342034323430343034E0
:1006100036342D343234303430343734203472347C
:100620006734623473346134403470346534743404
:100630006534733477346F3472346C3464342E34EC
:10064000643465346D346F346E342E3463346F34F7
:060650002E3475346B34FA
:02400E00A43FCD
:00000001FF
